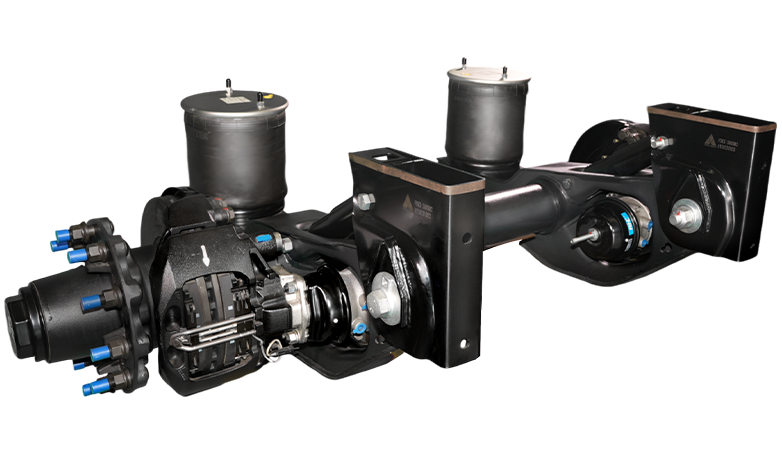

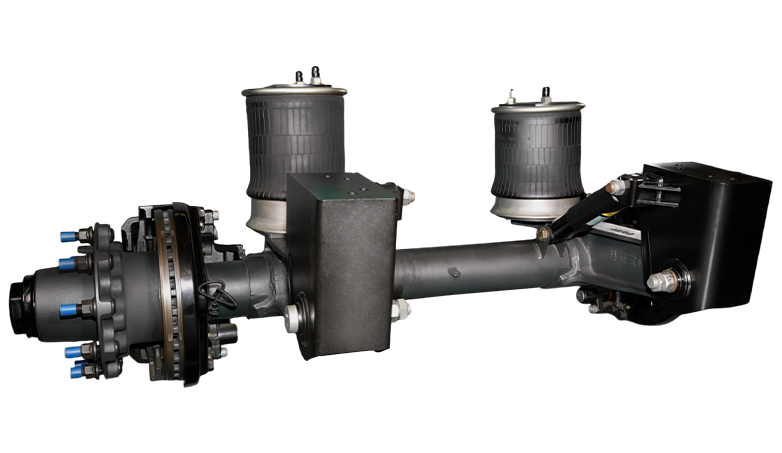

9T Hummingbird Air Suspension

Simple and Reliable Structure: Hollow trailing arms are welded to the axle for lifetime maintenance-free operation.
Reasonable Layout: Avoids localized stress on the frame, achieving perfect integration with the vehicle frame.
Hollow Oriented Arms: High-precision mold forming, automatic welding, and integrated machining ensure suspension quality.
Central Shock Absorber with High-Torsion Oriented Arms and Large Rubber Bushings: Enhances overall suspension performance.
Ultra-Lightweight: Maximizes vehicle payload for better fuel efficiency.

Product Name	Rated Load (Kg)	Axle Specification (mm)	Oriented Arm Specification (mm)	Allowable Installation Height Range FH (mm)	Track SP (mm)		Recommended Suspension Center Distance FM (mm)	Air Spring Specification (mm)	Air Spring Center Distance (mm)	Air Spring Upper Mount Height L (mm)	Brake Type
					Steel Wheel	Aluminum Wheel
American 10-Ton Hummingbird Air Suspension (Domestic)	10000	φ146	Hollow Oriented Arms	235-275	1840	1860	900	φ350	780	8	Disc Brake / Drum Brake
				280-340						8
				340-370						8
				370-400						8
				400-425						8
				430-475						50
				480-515						100
American 12-Ton Cast Steel Oriented Arm Air Suspension	12000	φ146	Cast Oriented Arms	380-420	1840	1860	900	φ350	773	8	Disc Brake / Drum Brake
				420-450						40
				450-480						60
				480-500						90
American 13-Ton Full-Wrap Main Beam Air Suspension	13000	φ146	Fully Enclosed Main Beam Oriented Arm	380-435	1969		1021	φ380	906	33	Disc Brake / Drum Brake
