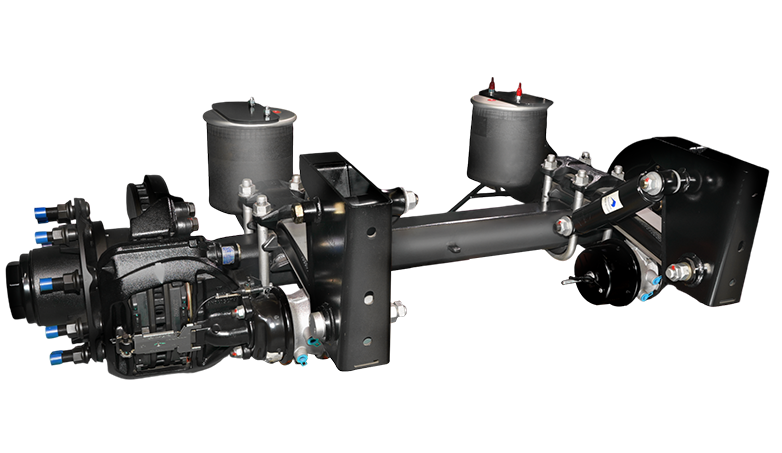

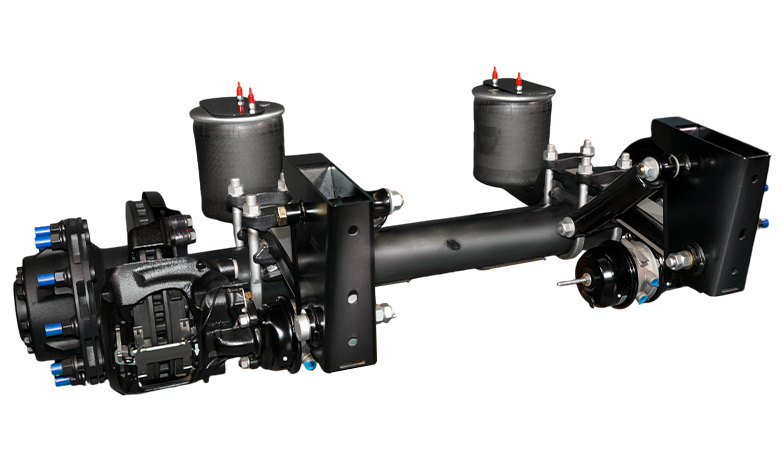

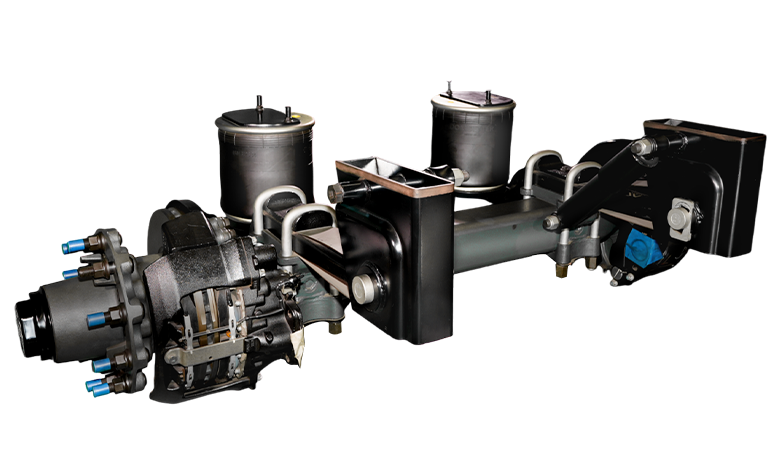

10T120 Square European Air Suspension

A wide range of options to meet various customer usage scenarios, compatible with 150 square axles, 120 square axles, and 146 round axles.
Modular design with mature and stable structure, tested in various complex working conditions;
Effectively reduces torsion and impact during driving, maintaining vehicle comfort and safety;
Lightweight without compromising reliability, increasing vehicle payload for better fuel efficiency;

Technical Parameters

Product Name	Rated Load (Kg)	Axle Specification (mm)	Oriented Arm Specification (mm)	Allowable Installation Height Range FH (mm)	Track SP (mm)		Recommended Suspension Center Distance FM (mm)	Air Spring Specification (mm)	Air Spring Center Distance (mm)		Air Spring Upper Mount Height L (mm)	Brake Type
					Steel Wheel	Aluminum Wheel			φ300	φ350
European 10-ton Air Suspension	10000	□120	70*62	350-375	1840	1860	900	φ300/φ350	780	740	8	Disc Brake
				380-405							8
				410-430							8
				435-460							50
				465-495							8
				500-530							8
	10000	φ146	70*62	360-385	1840	1860	900	φ300/φ350	780	740	8	Disc Brake / Drum Brake
				390-420							8
				425-445							8
				450-470							50
				475-510							8
				515-540							8
European 13-ton Air Suspension	13000	□150	100*56	370-395	1840	1860	900	φ350	——	740	8	Disc Brake / Drum Brake
				400-430							8
				435-460							8
				465-495							8
				500-530							50
	13000	φ146	100*56	355-390	1840	1860	900	φ350	——	740	8	Disc Brake / Drum Brake
				395-425							8
				430-455							8
				460-490							8
				495-530							50
